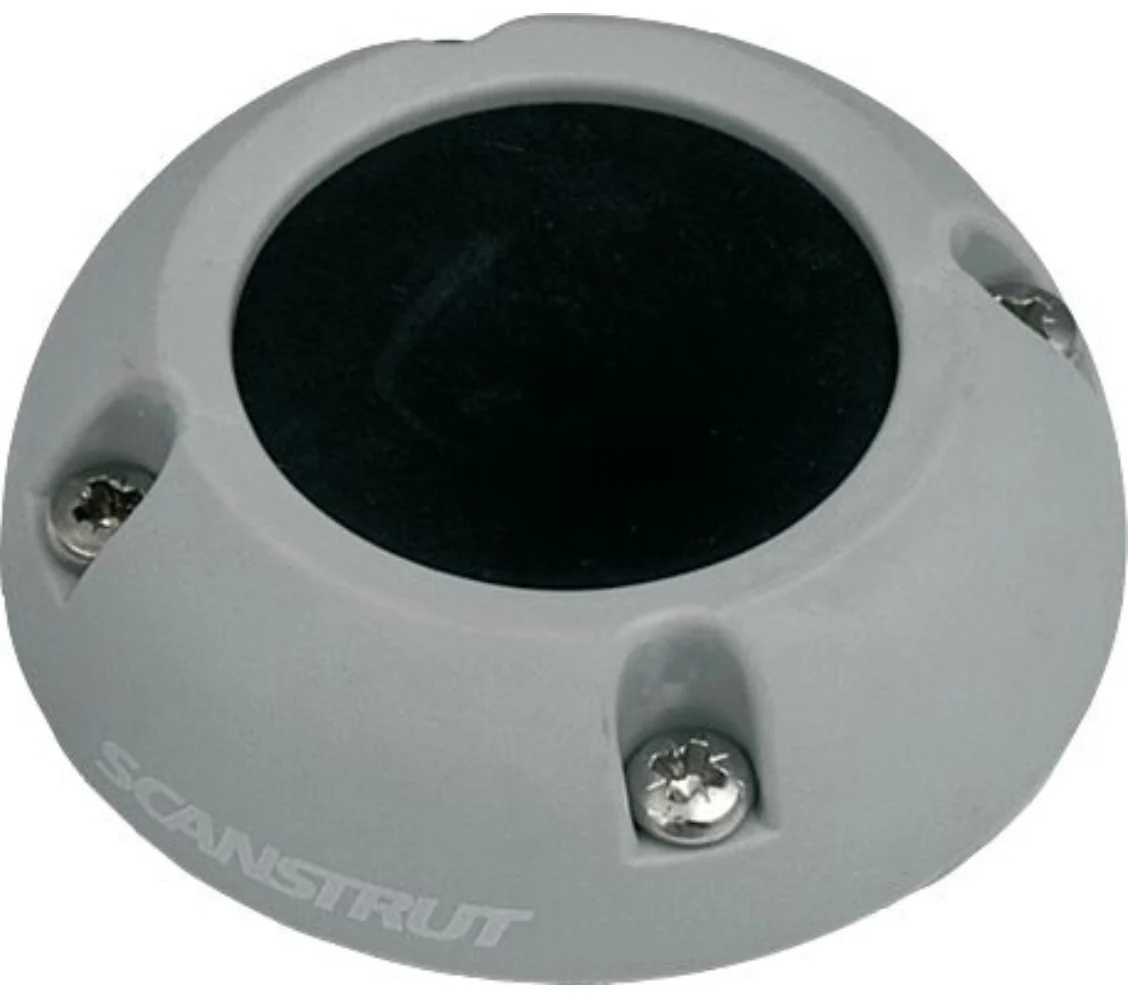

Are you looking for a reliable and completely waterproof cable seal for large cables or pre-terminated cables on your boat, motorhome, or other demanding outdoor installations? The Scanstrut Deckseal Large Cable Seal Grey is designed for cables with diameters of 12–15 mm and connectors with diameters of up to 40 mm. It provides professional protection against moisture, UV exposure, and mechanical wear while delivering a clean and secure cable entry solution, even in harsh environments.

The domed design enhances durability, protects against impacts, and efficiently sheds water away from the cable seal. The split-seal design allows the cable seal to be installed around pre-terminated cables without removing the connectors, saving both time and effort during installation.

IP68-Rated Waterproof Protection for Marine and Outdoor Environments

The Deckseal Large provides outstanding protection against water, moisture, and spray. Its IP68-rated construction makes it an excellent choice for installing radar systems, antennas, solar panels, marine electronics, and other equipment where long-term waterproof performance is essential.

The included 3M gasket ensures a durable, watertight installation without the need for complicated sealing solutions.

Easy Installation, Even with Large Connectors

The split-seal design allows the cable seal to be easily installed around cables with pre-installed connectors. This reduces installation time and eliminates the need to disconnect or cut cables when installing marine electronics, communication equipment, and other systems.

The included seals can be easily customized by drilling to accommodate different cable diameters, ensuring the most secure and watertight installation possible.

Built for Demanding Marine Environments

UV-resistant materials and A4 316 stainless steel fasteners ensure exceptional durability, even in saltwater environments. The domed profile prevents water from pooling around the cable entry while also protecting the installation from impacts and external wear.

Integrated captive nuts make installation quick, easy, and secure without unnecessary adjustments.

Features:

• Suitable for cables with diameters of 12–15 mm
• Fits connectors with diameters up to 40 mm
• IP68-rated waterproof construction
• Domed design effectively sheds water
• UV-resistant materials for marine use
• A4 316 stainless steel fasteners
• Includes a 3M gasket for a watertight installation
• Split seal for cables with pre-installed connectors
• Includes an adaptable pre-drilled seal
• Integrated captive nuts for quick installation
• No sealant is required around the sealing inserts

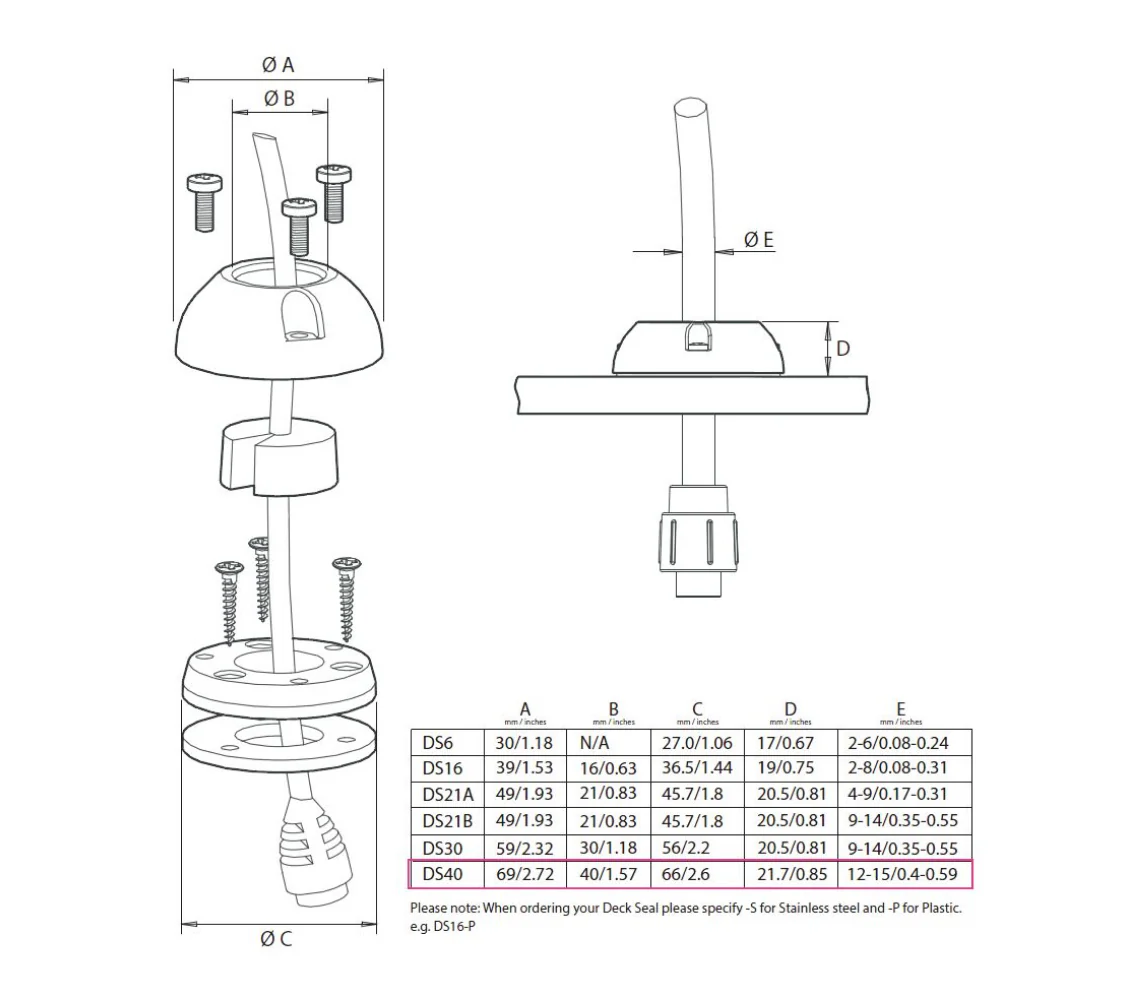

Technical Specifications:

• Model: Deckseal Large
• Color: Grey
• Cable diameter: 12–15 mm
• Maximum connector diameter: 40 mm
• Protection rating: IP68
• Outer diameter: 69 mm
• Mounting hole diameter: 40 mm
• Base plate diameter: 66 mm
• Height above deck: 21.7 mm
• Fasteners: A4 316 stainless steel
• Gasket: 3M gasket

The Scanstrut Deckseal Large Cable Seal Grey is the perfect choice when you need a durable, clean, and completely waterproof Cable Seal for large cables and larger connectors. Professional-grade quality, straightforward installation, and marine-grade materials ensure a long-lasting, worry-free cable installation in all weather conditions.
