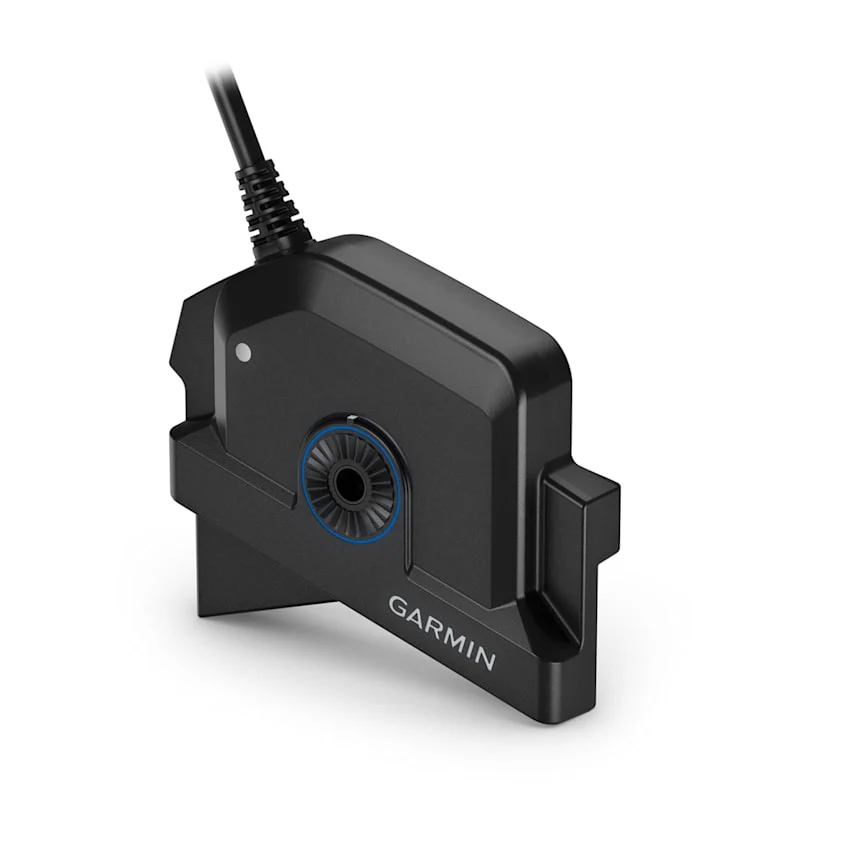

Garmin LiveScope™ 2 LVS44 Transducer takes live sonar to the next level, delivering the clearest, sharpest, and longest-range LiveScope experience ever. The upgraded technology provides an exceptionally detailed real-time view of fish, lures, and underwater structures at depths of up to 76 meters (250 ft), helping you make better decisions on the water.

LiveScope 2 offers up to 20% improved target separation, reduced image artifacts, and outstanding image clarity. Its high-speed processing lets you see fish movements and reactions instantly, making it easier to identify the perfect moment for a strike.

Installation is simpler than ever because no separate Black Box is required. The transducer connects directly to a compatible Garmin chartplotter and power source, reducing cabling and making setup fast and straightforward.

LiveScope 2 supports Forward, Down, and Perspective modes, each with wider viewing angles for improved coverage. See what's happening in front of your boat, directly below it, or gain a broad overhead view around your vessel. The included adjustable Perspective Mode Mount makes switching between viewing modes quick and easy.

Built-in sensors further enhance usability. Water detection automatically turns the sonar off when the transducer is lifted out of the water, while the integrated temperature sensor provides real-time water temperature readings.

When paired with a compatible Garmin chartplotter, LiveScope 2 offers more than 15 vivid color palettes for enhanced detail and visibility. It is also compatible with Spy Pole™ for independent wireless sonar control and OneVü™, which combines LiveScope and GT360UHD sonar into an immersive 3D display.

Key Features

• Live sonar with enhanced real-time image clarity
• Up to 20% better target separation and fewer image artifacts
• Bottom tracking to depths of up to 76 m (250 ft) in freshwater
• No Black Box required for quick and easy installation
• Wider coverage in Forward, Down, and Perspective modes
• Automatic water detection and power management
• Built-in water temperature sensor
• More than 15 color palette options with compatible Garmin chartplotters
• Compatible with Spy Pole™ and OneVü™

Technical Specifications

• Beam width: Forward 20° × 165°, Down/Perspective 20° × 180°
• Cable length: 5.5 m (18 ft)
• Frequency: 600–1050 kHz
• Transmit power: 392 W
• Maximum depth: 76 m (250 ft) in Forward and Down modes
• Input voltage: 10–35 V
• Power consumption: Up to 32 W
• Dimensions: 16 × 14.2 × 4.8 cm (6.3 × 5.6 × 1.9 in)
• Weight: 1.79 kg (3.93 lb)

Package Includes

• Garmin LiveScope™ 2 LVS44 Transducer
• Adjustable Perspective Mode Mount

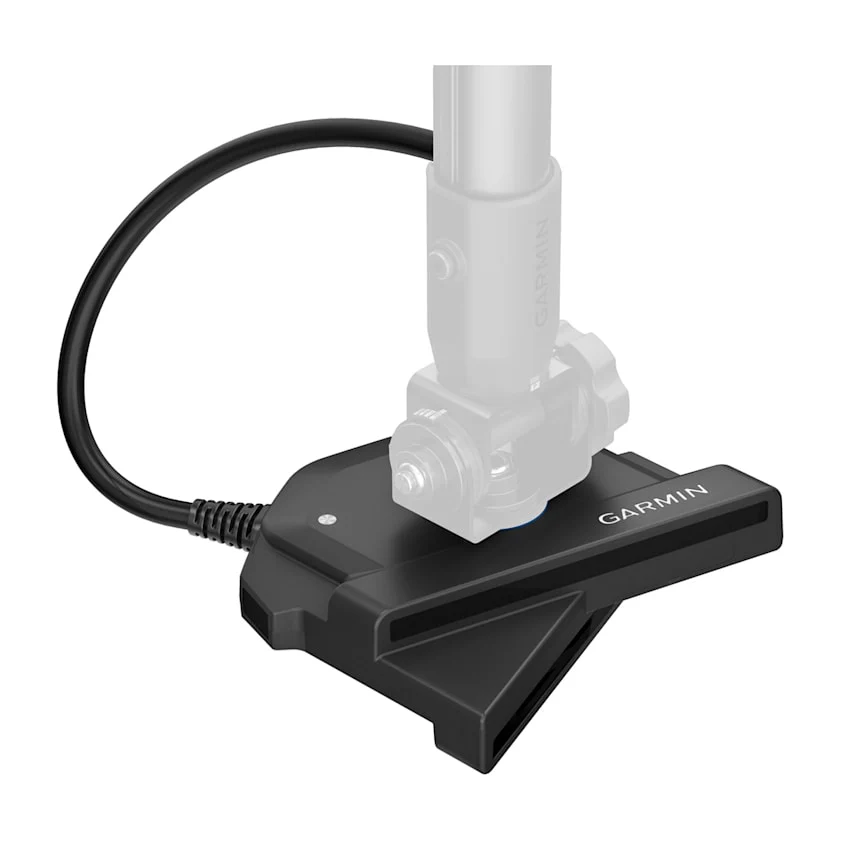

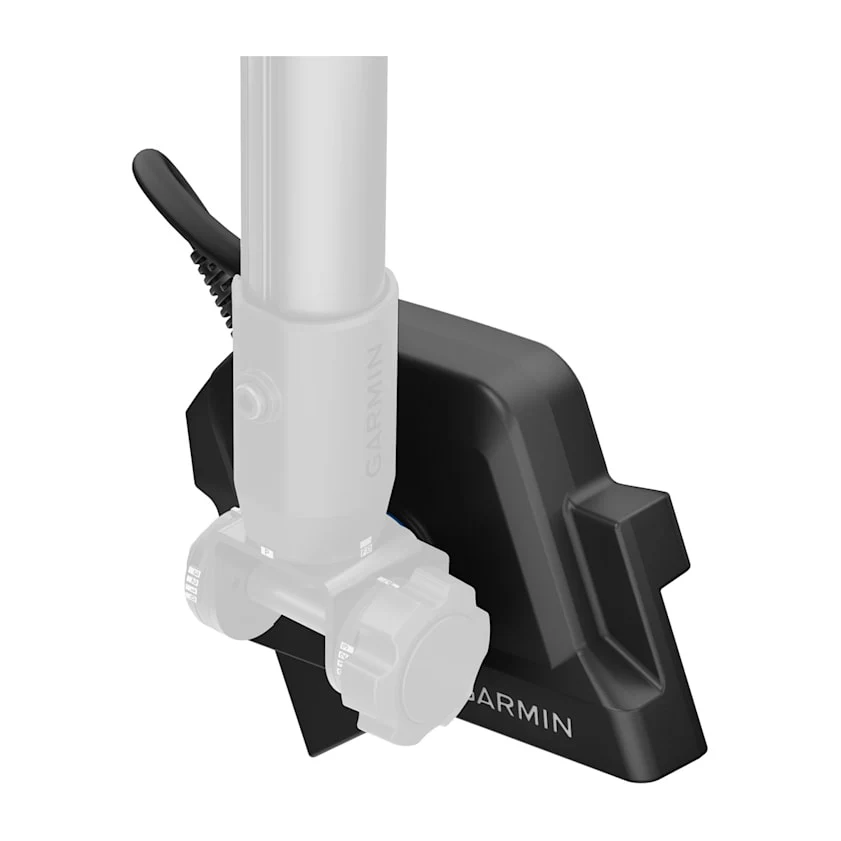

• Trolling motor shaft mount
• Power/network cable and adapter
• Adapter plate for Force® Kraken LiveScope mount
• Mounting hardware
• Documentation
