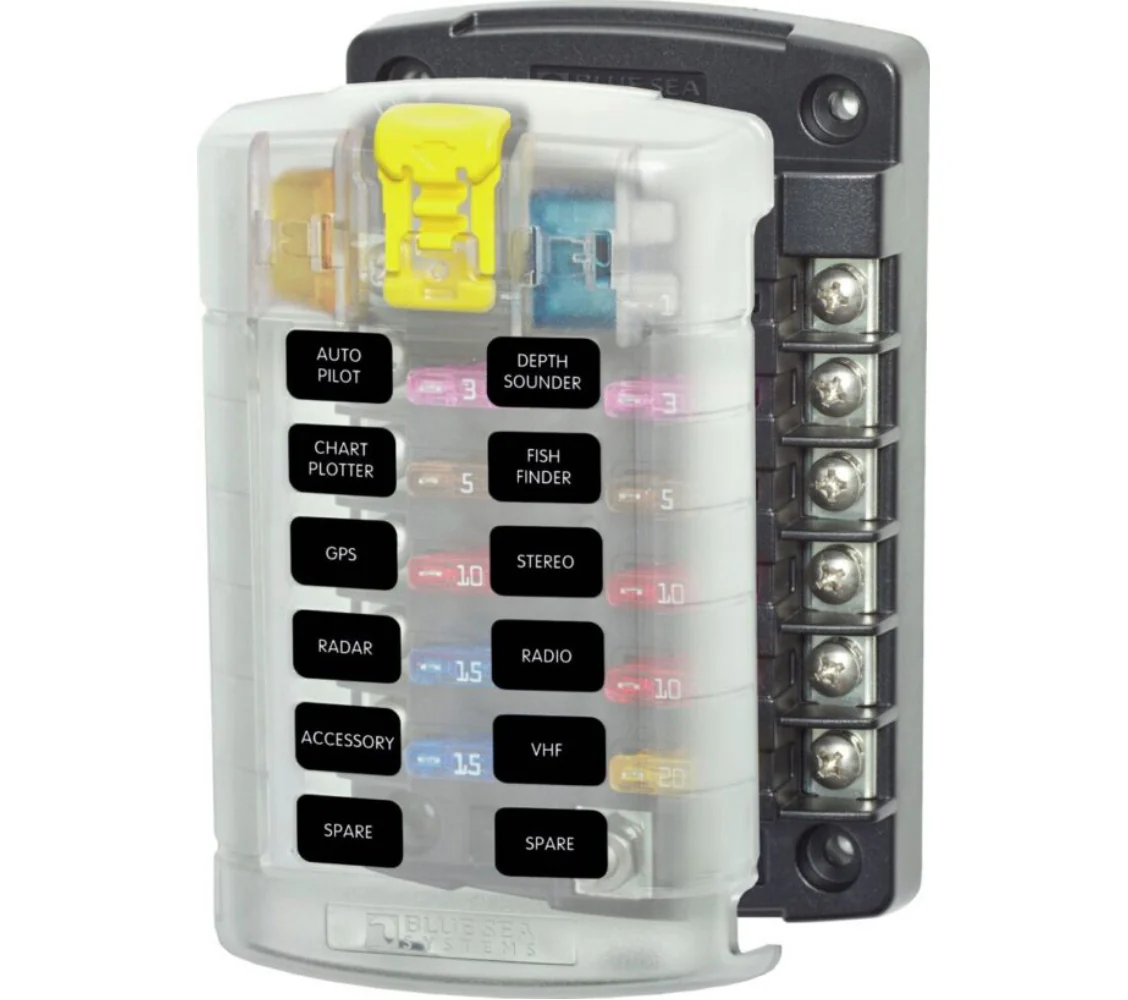

Blue Sea ST Fuse Panel with Cover for 12 Circuits
Blue Sea ST Fuse Panel with Cover for 12 Circuits is a high-quality and clearly organized fuse distribution panel designed to protect and manage a boat’s electrical circuits. With twelve fuse positions, it is an excellent choice for larger electrical systems where multiple onboard devices require individual circuit protection and centralized power distribution.
Looking for a reliable fuse panel for a boat with many electrical systems such as chartplotters, fish finders, VHF radios, bilge pumps, lighting, and USB chargers? The Blue Sea ST fuse panel provides a safe and organized solution for expanding or upgrading your boat’s electrical system.
Each circuit can be individually protected using ATO® or ATC® blade fuses selected according to the specific load requirements.
The cover includes space for two spare fuses and a label holder for circuit identification. Additionally, 20 blank labels are included so each circuit can be clearly marked.
Its robust construction makes it ideal for both new installations and upgrades of existing electrical systems.
• Integrated positive bus bar
• Protective cover included
• Storage for 2 spare fuses
• 20 labeling stickers included
• Tinned copper bus bars and fuse contacts
• Compatible with ring and fork terminals
• Designed for continuously powered circuits
• Compatible with ATO® and ATC® fuses
• Fuses sold separately
• Max rating: 100 A per panel
• Max per circuit: 30 A
• Max voltage: 32 V DC
• Positive bus stud: #10-32 terminal bolt
• Terminal type: #8-32 screws with star washer
• Recommended torque: 2.71 Nm
• Terminal screw torque: 1.69 Nm
• Mounting: M4 (#8) screws
• Weight: 0.31 kg
The Blue Sea ST 12-Circuit Fuse Panel with Cover is an excellent choice for boat owners who want a safe, well-organized, and easily maintainable electrical system. Its high capacity, quality materials, and protective cover make it a dependable solution for demanding marine environments.
Looking for a reliable fuse panel for a boat with many electrical systems such as chartplotters, fish finders, VHF radios, bilge pumps, lighting, and USB chargers? The Blue Sea ST fuse panel provides a safe and organized solution for expanding or upgrading your boat’s electrical system.
Up to 12 protected circuits
The fuse panel allows protection for up to twelve separate circuits from a single central unit. The integrated positive bus bar simplifies wiring, reduces connection points, and creates a clean, service-friendly installation.Each circuit can be individually protected using ATO® or ATC® blade fuses selected according to the specific load requirements.
Practical protective cover and labeling system
The included cover meets ABYC and USCG requirements for electrical isolation and protects circuits and connections from accidental contact and contamination. A quick-release latch allows fast access during maintenance and servicing.The cover includes space for two spare fuses and a label holder for circuit identification. Additionally, 20 blank labels are included so each circuit can be clearly marked.
Built for marine environments
Tinned copper bus bars and fuse contacts provide excellent corrosion resistance in marine conditions. The panel is compatible with both ring and fork terminals, making installation flexible across different electrical setups.Its robust construction makes it ideal for both new installations and upgrades of existing electrical systems.
Features:
• 12-circuit fuse panel• Integrated positive bus bar
• Protective cover included
• Storage for 2 spare fuses
• 20 labeling stickers included
• Tinned copper bus bars and fuse contacts
• Compatible with ring and fork terminals
• Designed for continuously powered circuits
• Compatible with ATO® and ATC® fuses
• Fuses sold separately
Technical Specifications:
• Number of circuits: 12• Max rating: 100 A per panel
• Max per circuit: 30 A
• Max voltage: 32 V DC
• Positive bus stud: #10-32 terminal bolt
• Terminal type: #8-32 screws with star washer
• Recommended torque: 2.71 Nm
• Terminal screw torque: 1.69 Nm
• Mounting: M4 (#8) screws
• Weight: 0.31 kg
The Blue Sea ST 12-Circuit Fuse Panel with Cover is an excellent choice for boat owners who want a safe, well-organized, and easily maintainable electrical system. Its high capacity, quality materials, and protective cover make it a dependable solution for demanding marine environments.
Blue Sea ST Fuse Panel with Cover for 12 Circuits is a high-quality and clearly organized fuse distribution panel designed to protect and manage a boat’s electrical circuits. With twelve fuse positions, it is an excellent choice for larger electrical systems where multiple onboard devices require individual circuit protection and centralized power distribution.
Looking for a reliable fuse panel for a boat with many electrical systems such as chartplotters, fish finders, VHF radios, bilge pumps, lighting, and USB chargers? The Blue Sea ST fuse panel provides a safe and organized solution for expanding or upgrading your boat’s electrical system.
Each circuit can be individually protected using ATO® or ATC® blade fuses selected according to the specific load requirements.
The cover includes space for two spare fuses and a label holder for circuit identification. Additionally, 20 blank labels are included so each circuit can be clearly marked.
Its robust construction makes it ideal for both new installations and upgrades of existing electrical systems.
• Integrated positive bus bar
• Protective cover included
• Storage for 2 spare fuses
• 20 labeling stickers included
• Tinned copper bus bars and fuse contacts
• Compatible with ring and fork terminals
• Designed for continuously powered circuits
• Compatible with ATO® and ATC® fuses
• Fuses sold separately
• Max rating: 100 A per panel
• Max per circuit: 30 A
• Max voltage: 32 V DC
• Positive bus stud: #10-32 terminal bolt
• Terminal type: #8-32 screws with star washer
• Recommended torque: 2.71 Nm
• Terminal screw torque: 1.69 Nm
• Mounting: M4 (#8) screws
• Weight: 0.31 kg
The Blue Sea ST 12-Circuit Fuse Panel with Cover is an excellent choice for boat owners who want a safe, well-organized, and easily maintainable electrical system. Its high capacity, quality materials, and protective cover make it a dependable solution for demanding marine environments.
Looking for a reliable fuse panel for a boat with many electrical systems such as chartplotters, fish finders, VHF radios, bilge pumps, lighting, and USB chargers? The Blue Sea ST fuse panel provides a safe and organized solution for expanding or upgrading your boat’s electrical system.
Up to 12 protected circuits
The fuse panel allows protection for up to twelve separate circuits from a single central unit. The integrated positive bus bar simplifies wiring, reduces connection points, and creates a clean, service-friendly installation.Each circuit can be individually protected using ATO® or ATC® blade fuses selected according to the specific load requirements.
Practical protective cover and labeling system
The included cover meets ABYC and USCG requirements for electrical isolation and protects circuits and connections from accidental contact and contamination. A quick-release latch allows fast access during maintenance and servicing.The cover includes space for two spare fuses and a label holder for circuit identification. Additionally, 20 blank labels are included so each circuit can be clearly marked.
Built for marine environments
Tinned copper bus bars and fuse contacts provide excellent corrosion resistance in marine conditions. The panel is compatible with both ring and fork terminals, making installation flexible across different electrical setups.Its robust construction makes it ideal for both new installations and upgrades of existing electrical systems.
Features:
• 12-circuit fuse panel• Integrated positive bus bar
• Protective cover included
• Storage for 2 spare fuses
• 20 labeling stickers included
• Tinned copper bus bars and fuse contacts
• Compatible with ring and fork terminals
• Designed for continuously powered circuits
• Compatible with ATO® and ATC® fuses
• Fuses sold separately
Technical Specifications:
• Number of circuits: 12• Max rating: 100 A per panel
• Max per circuit: 30 A
• Max voltage: 32 V DC
• Positive bus stud: #10-32 terminal bolt
• Terminal type: #8-32 screws with star washer
• Recommended torque: 2.71 Nm
• Terminal screw torque: 1.69 Nm
• Mounting: M4 (#8) screws
• Weight: 0.31 kg
The Blue Sea ST 12-Circuit Fuse Panel with Cover is an excellent choice for boat owners who want a safe, well-organized, and easily maintainable electrical system. Its high capacity, quality materials, and protective cover make it a dependable solution for demanding marine environments.
